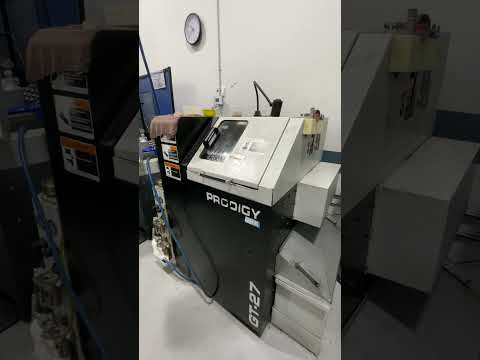

SNK PRODIGY MODEL GT-27 CNC GANG TOOL LATHE, MFG. 2006

SNK PRODIGY MODEL GT-27 CNC GANG TOOL LATHE, MFG. 2006

Spindle RPM – Variable: 100 to 6,000 RPM
Spindle Bore: 1.0625″ (27mm)
Bar Size – Maximum: 1.0625″ (27mm)
Tool Block Center Height: 0.5″ (12.7mm)
Spindle Nose: 5C
Chuck Size – Maximum: 4″ (101.6mm)
X-Axis Travel – Maximum: 12″ (305mm)
Z-Axis Travel – Maximum: 6.5″ (165mm)
C-Axis Indexing Increment: Indexes at every 0.001 Degrees
Feed Rate: 300 IPM (7.6 m/min)
Rapid Traverse: 800 IPM (20.3 m/min)
Axis Drives: Digital with Brushless Motor
Actual Dimensions: 38″L x 34″W x 47″H (965 x 864 x 1,194mm)
Actual Weight: 3,840 LBS. (1,741kg)

Equipped With:
GE Fanuc Series oi Mate-TB CNC Controller
Air Collet Chuck
Coolant Pump
Spindle Motor: 15 Minute Rate: 7.4 HP (5kW)
Motor: 208 – 230 Volts, 3 Ph.
Power Requirements: 7.5 KVA
Compressed Air: 5SCFM Required (Clean, Dry Air)

*CATALOG SPECIFICATIONS*
*NO TOOLING SOLD WITH MACHINE OTHER THAN WHATS IN THE PHOTO.*
*MACHINES SPECIFICATIONS SUBJECT TO VERIFICATION AND CHANGE.*
*SPECIFICATIONS SHOULD BE VERIFIED PRIOR TO PURCHASE.*
